Water powered proportional dosing & mixing

Idromix proportional dosing pumps

Idromix designs and assembles water-powered proportional dosing pumps in France that run with no electricity: mains water pressure alone is enough to drive them. Installed directly on your pipework, the pump draws in your product and injects it in proportion to the flow passing through it. The concentration stays the same whether you use 20 litres or 3,000 litres per hour.

Request information
Download the brochure

THE PRINCIPLE

Schematic of the iDose 3.5 proportional dosing pump: mains water at 0.3 to 6 bar and 10 to 3,500 l/h passes through the pump, which draws in neat product and injects it in proportion to the flow, with no electricity.
Mains water pressure drives the pump: no electric motor, no power supply.

THE RANGE

The iDose 3.5 range

A single range, available in variants that cover the vast majority of installations.

ModelDosing rangeConnections
iDose 3.5 DA 0220.2% to 2%3/4″ or 1″ BSP
iDose 3.5 DA 0550.5% to 5%3/4″ or 1″ BSP
iDose 3.5 DA 1101% to 10%3/4″ or 1″ BSP
The three dosing ranges of the iDose 3.5 on a common scale from 0.2% to 10%: DA 022 from 0.2% to 2%, DA 055 from 0.5% to 5%, DA 110 from 1% to 10%. The ranges partly overlap.
The three ranges overlap: if your target dosage falls in a shared zone, more than one model will suit.

Common to the whole range: water flow of 10 to 3,500 l/h, pressure of 0.3 to 6 bar, accuracy of ± 5% of full scale, a built-in ON/OFF function as standard, a natural polypropylene body and a motor with no metal parts. A translucent “Vision” version lets you follow the motor stroke.

See the full iDose 3.5 technical data sheet

HOW TO CHOOSE

How to choose your dosing pump?

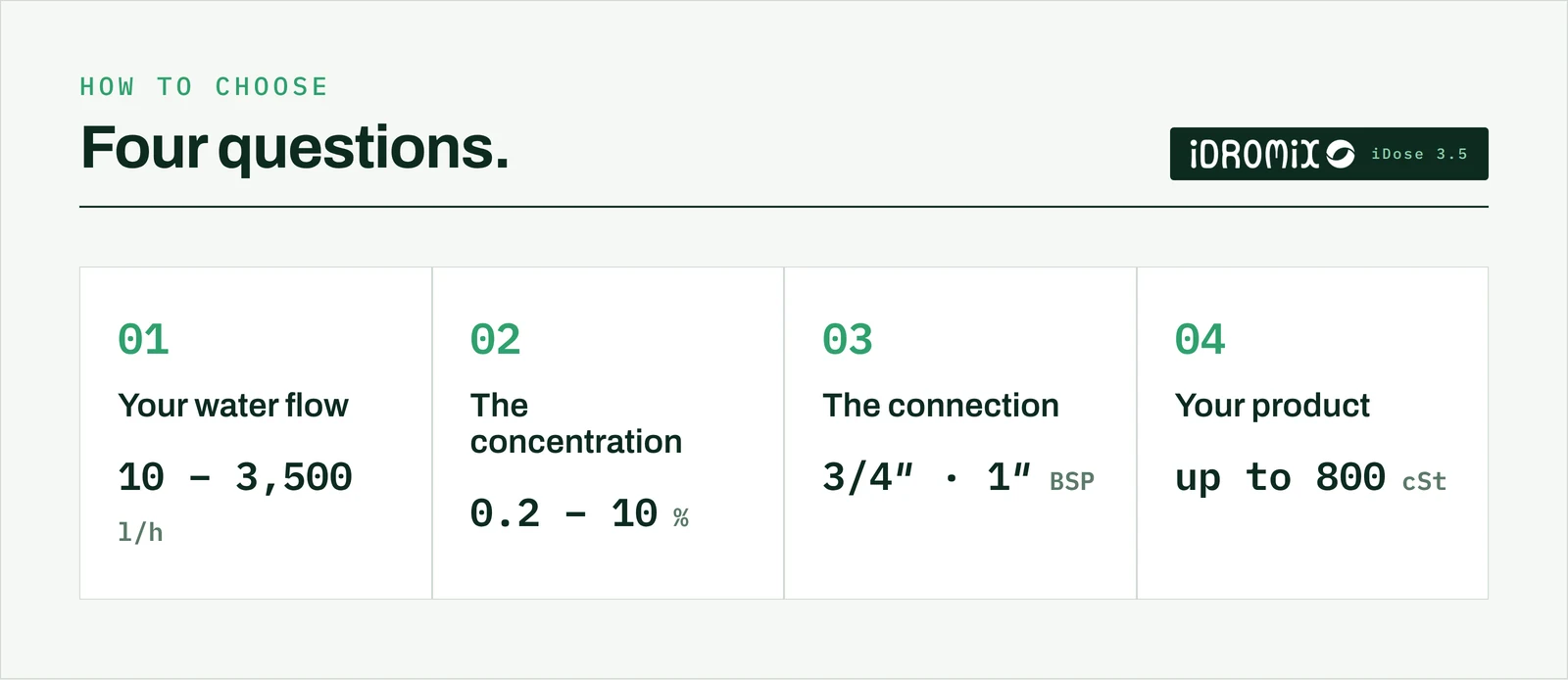

How to choose an iDose 3.5 dosing pump in four criteria: water flow 10 to 3,500 l/h, concentration 0.2% to 10%, connection 3/4 or 1 inch BSP, product viscosity up to 800 cSt.
Four criteria are enough to determine the model and the setting.

1. Your water flow

The iDose 3.5 covers 10 to 3,500 l/h. Below a drip feed or above 3,500 l/h, let’s talk.

2. The concentration to inject

Choose the range that brackets your usual dosage: DA 022 for low doses, DA 110 for high ones. The setting shown corresponds to the actual concentration at the pump outlet.

3. The connection diameter

3/4″ BSP (M 20×27) or 1″ BSP (M 26×34), depending on your pipework.

4. The nature of your product

The natural polypropylene and standard Viton FKM seals withstand aggressive products. Above 400 cSt viscosity, a dedicated kit is available.

OPTIONS AND PARTS

Tool-free maintenance

  • Viscosity kit, for thick products (up to 800 cSt)
  • Specific seals on request (Viton FKM as standard)
  • Interchangeable dosing section across the models in the range
  • Wear parts available — tool-free maintenance

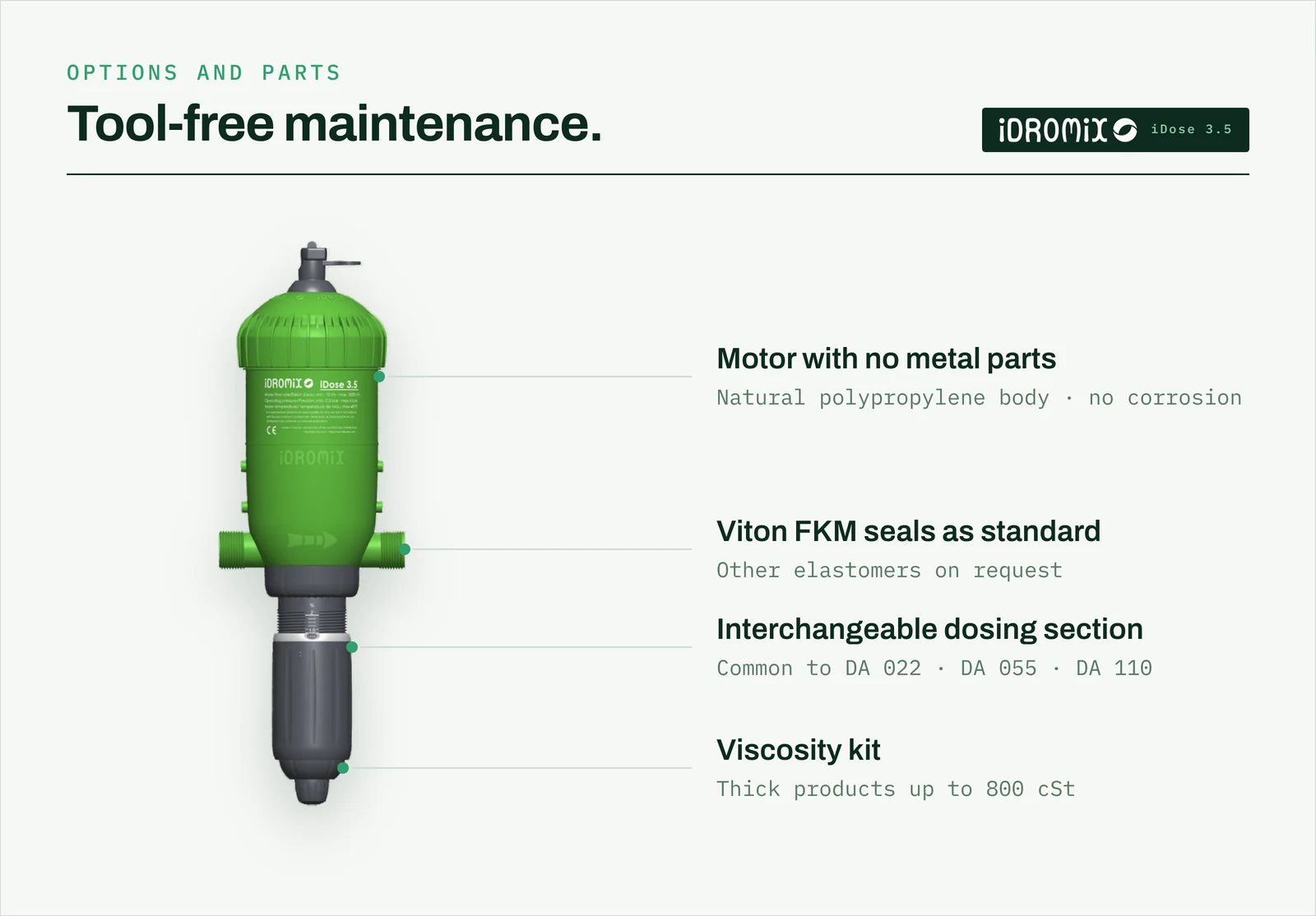

Options on the iDose 3.5 pump: motor with no metal parts in natural polypropylene, Viton FKM seals as standard, dosing section interchangeable across models, viscosity kit for thick products up to 800 cSt.
Wear parts are replaced without tools, and the dosing section is common to all three models.

Need advice before choosing?

Tell us about your installation: we’ll recommend the right model and setting, and point you to your nearest distributor.
